Complete sets for special application
Aerport lighting low voltage flexible air - cables
| Cable type: | SEpN/FJ | (SEpEs/FJ) |
| Sheat type: | POLIHLOROPREN | (HLORSULFONIRANI POLIETILEN) |
| Rated voltage: | 500 V (600 V) | |
| Testing voltage: | 3500 V ~ , 5 min | |
| Operating temp.: | 90° C | |
| Standard: | FAA L-824 |

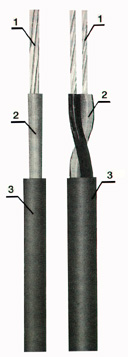

1 - COPPER FINE-STRANDE TINNED CONDUCTOR (CLASS S)
2 - INSULATION OF ETHYLENEPROPYLENE ELASTOMER
3 - SHEATH BASED ON POLY
Application: These airport cables are
used in secondary circuits for supply of airfield low voltage lighting on the airport
starting - landing paths. They are also used as well as flexible air - cables. These
cables can be fitted out with connectors for connect the Hghting fixture to low voltage
secondary winding of the isolating transformes. These cables are generally two - core, but
they also cari be oihers construction.
Constructive-technical data for airport cables type SEpN/FJ are given in the table 1.
Table 1
Rated voltage V |
Nominal cross section of conductor |
Construction
of conductor |
Nom. thickness |
Outer diameter of cable (max) |
Cable mass (approx.) |
Current carrying capacity |
|||||||||||||||
| AWG | mm2 | Insul. |
Sheat mm |
mm |
Copper kg |
Total kg |
In ground |
In duct |
|||||||||||||
| 500 | - | 1X2.5 | 50 X 0.25 | 0.90 | 1.00 | 6.0 | 23 | 60 | 32 | 26 | |||||||||||
| 500 | - | 2X2.5 | 50 X 0.25 | 0.90 | 1.20 | 11.5 | 46 | 155 | 28 | 24 | |||||||||||
| 500 | - | 4X2.5 | 50 X 0.25 | 0.90 | 1.20 | 13.5 | 92 | 220 | 23 | 20 | |||||||||||
| 600 | 2X12 | 2X3.31 | 65 X 0.26 | 1.00 | 1.20 | 12.0 | 65 | 195 | 32 | 25 | |||||||||||
| 500 | - | 1X4 | 56 X 0.30 | 1.00 | 1.00 | 7.0 | 37 | 80 | 42 | 28 | |||||||||||
| 500 | - | 2X4 | 56 X 0.30 | 1.00 | 1.80 | 14.0 | 74 | 225 | 36 | 25 | |||||||||||
SEpN - LIGHTING UNSCREENED CABLE FOR AIRPORT INSTALLATIONS
SEpN/Z - LIGHTING SCREENED CABLE FOR AIRPORT INSTALLATIONS
