Airport Lighting Cable With Electrical Screen
| Cable type: | SEpN/Z | (SEpEs/Z) |
| Sheat type: | POLIHLOROPREN | (HLORSULFONIRANI POLIETILEN) |
| Rated voltage: | 5000 V | |
| Testing voltage: | 13000 V ~ , 5 min | |
| Operating temp.: | 90° C | |
| Standard: | FAA L-824 |

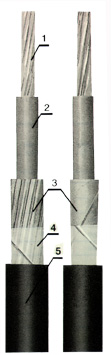

1 - COPPER STRANDED TINNED CONDUCTOR (CLASS 2)
2 - INSULATION OF ETHYLENE-PROPYLENE ELASTOMER
3 - SHIELD (SCREEN) OF COPPER WIRES OR TAPE
4 - SEPARATOR OF POLYESTER TAPE
5 - SHEATH BASED ON POLYCHLORO-PRENE ELASTOMER OR CHLORO-SULFONATED POLYETHYLENE ELASTOMER
Application: They are used for
interconnect the isolating transformes in series and theirs supplied by a constant current
regulator in highvoltage series primary circuits on airport starting-landing paths. This
type of airport cable used in places, where thunderstorms and thunder claps in proximity
of the cables are frequent and where is a danger of their being attacked by rodents,
termites and other deleterious insects.
Constructive-technical data for airport cables lype SEpN/Z (SEpEs/Z) are given in the
table 1.
Table 1
| Naponski nivo V | Nazivni poprečni presek provodnika mm2 | Konstrukcija BROJ ŽICA X PREČNIK ŽICE N° x mm | Naz. debljina | Spoljni prečnik kabla | Masa kabla (približno) | Strujno opterećenje | ||||||||||||||
Insul. |
Sheat mm |
Copper kg |
Total kg |
In ground |
In duct |
|||||||||||||||
| Screen wires | ||||||||||||||||||||
| 5000 | 6 | 7 X 1.08 | 2.80 | 2.20 | 15.5 | 156 | 360 | 54 | 32 | |||||||||||
| Screen tape | ||||||||||||||||||||
| 5000 | 6 | 7 X 1.08 | 2.80 | 2.10 | 14.0 | 95 | 280 | 54 | 32 | |||||||||||
SEpN - LIGHTING UNSCREENED CABLE FOR AIRPORT INSTALLATIONS
SEpN/FJ - LIGHTING LOW VOLTAGE CABLES FOR AIRPORT INSTALLATIONS
