PVC insulated power cables

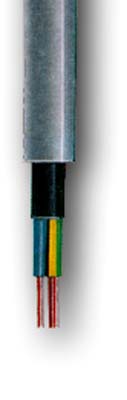

PVC INSULATED AND SHEATHED CABLE

Nominal voltage 300/500 V
Testing voltage 2000 V

Type PP
JUS N.C3.220

Description:

Conductor: Untinned solid or stranded multi-wire copper conductor.
Insulation: Seamless layer of PVC compound.
Cable Core: Two or more wires stranded together. The interstices are filled with unvulcanized rubber or a similar material .
Sheath: Extruded PVC tube

Standard Colour of the Sheath: Grey.

Application: In dry and damp locations for laying in, over and under the mortar, as well as outdoors.

The maximum permissible temperature is 70° C

Nominal area
of conductor		 Construction
of conductor		 Max. overall
diameter		 Net weight
of copper		 Weight Packing
            Length Drum
mm2   mm mm kg/km kg/km m No.

2 X 1,5 1 1,38 9,8 28 124 50 coils
2 X 2,5 1 1,78 11,0 46 169 50 coils
2 X 4 1 2,25 12,5 73 230 50 coils

2 X 6 1 2,76 13,5 108,5 293 50 coils
2 X 10 1 3,57 18,0 182 435 50 coils
2 X 16 7 1,70 20,0 289 655 50 coils

2 X 25 7 2,14 24,0 468 990 500 12
2 X 35 19 1,53 27,5 647 1330 500 12

3 X 1,5 1 1,38 10,5 41 145 50 coils
3 X 2,5 1 1,78 11,5 68 198 50 coils
3 X 4 1 2,25 13,0 109 265 50 coils

3 X 6 1 2,76 15,0 163 340 50 coils
3 X 10 1 3,57 19,0 272 535 50 coils
3 X 16 7 1,70 22,0 435 815 500 12

3 X 25 7 2,14 26,0 700 1235 500 12
3 X 35 19 1,53 29,5 970 1660 500 14

4 X 1,5 1 1,38 11,0 54 168 50 coils
4 X 2,5 1 1,78 12,5 91 235 50 coils
4 X 4 1 2,25 14,5 145 330 50 coils

4 X 6 1 2,76 16,5 218 457 5O
4 X 10 1 3,59 21,0 364 693 500 12
4 X 16 7 1,70 23,5 580 1087 500 12

4 X 25 7 2,14 28,5 935 1620 500 14
4 X 35 19 1,53 32,0 1293 2140 500 14
