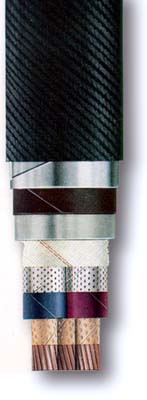

IPHO 13

Cables with impregnated paper insulation

PAPER INSULATED LEAD SHEATHED SCREENED POWER CABLE STEEL TAPE ARMOURED AND ANTI-CORROSIVE PROTECTION

Nominal voltage: 20 kV.
Testing voltage: 32 kV
Type: IPHO 13 and IPHO 13-A, NPHO 13 and NPHO 13-A
JUS N. C5. 020

Construction:
Conductor: Stranded copper or aluminium conductor.
Core: Conductor insulated with paper tapes and screened.
Cable Core: Cores laid-up and wound with cotton tape reinforced with coper threads and all impregnated with normal or semi-hard compound.
Sheat: Seamless lead or lead alloy tube.
Inner protection: Impregnated paper or impregnated jute with bitumen compound covers.
Mechanical protection: Two steel tapes.
Outer protection: Impregnated jute with bitumen compound covers.

Application: In urban and industrial networks for direct burial into ground.
NPHO 13 type is applied for inclined or vertical installation.

THREE-CORE SCREENED CABLE - copper conductor
Core number and conductor cross section	Insul. thickness P/O	Lead sheath thickness	Dia.over lead sheath	Steel tape thickness	Outer dia.	Cable weight	Standard packing length	Drum	Metal weight
Core number and conductor cross section	Insul. thickness P/O	Lead sheath thickness	Dia.over lead sheath	Steel tape thickness	Outer dia.	Cable weight	Standard packing length	Drum	Copper	Lead
mm²	mm	mm	mm	mm	mm	kg/km	m	N°	kg/km	kg/km
3 X 25	5,5	1,8	41,5	0,5	51,0	5830	1000	24	694	2560
3 X 35	5,5	2,0	44,5	0,8	56,0	7790	500	20	960	3040
3 X 50	5,5	2,0	47,5	0,8	59,0	8500	500	22	1300	3240
3 X 70	5,5	2,2	52,0	0,8	63,0	10200	500	24	1878	3880
S 3 X 95	5,5	2,0	48,5	0,8	60,0	10160	500	22	2606	3320
S 3 X 120	5,5	2,2	52,0	0,8	63,0	11700	500	24	3291	3890
S 3 X 150	5,5	2,4	55,0	0,8	66,0	13360	500	24	4042	4500
S 3 X 185	5,5	2,4	58,0	0,8	69,0	14980	500	24	5069	4750
S 3 X 240	5,5	2,6	62,0	0,8	73,0	17700	500	26	6663	5490
S 3 X 300	5,5	2,8	69,0	0,8	80,5	21340	500	26	8360	6610
S 3 X 400	5,5	3,2	76,5	0,8	88,0	26200	300	24	10690	8350
THREE-CORE SCREENED CABLE - aluminium conductor									Alumin.	Lead
3 X 25	5,5	1,8	41,5	0,5	51,0	5350	1000	24	210	2560
3 X 35	5,5	2,0	44,5	0,8	56,0	7120	500	20	292	3040
3 X 50	5,5	2,0	47,5	0,8	59,0	7600	500	22	397	3240
3 X 70	5,5	2,2	52,0	0,8	63,0	8890	500	24	573	3880
S 3 X 95	5,5	2,0	48,5	0,8	60,0	8350	500	22	794	3320
S 3 X 120	5,5	2,2	52,0	0,8	63,0	9410	500	24	1003	3890
S 3 X 150	5,5	2,4	55,0	0,8	66,0	10550	500	24	1230	4500
S 3 X 185	5,5	2,4	58,0	0,8	69,0	11450	500	24	1542	4750
S 3 X 240	5,5	2,6	62,0	0,8	73,0	13070	500	26	2027	5490
S 3 X 300	5,5	2,8	69,0	0,8	80,5	15520	500	26	2542	6610
S 3 X 400	5,5	3,2	76,5	0,8	88,0	18760	300	24	3251	8350
