Miniature Circular Connectors (Sealed)

Application
Miniature circilar connectors are easy disconnectable, sealed connectors applied to telecommunication units, heavy duty and environment resisting. Bayonet coupling at 3 points.
With their characteristics they fully meet MIL-C-5015 requirements.

Shell

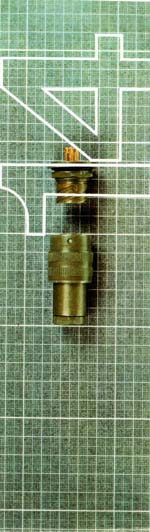

Shell is chromate plated aluminium alloy in grey-olive coluor. Depending on connector application, shell can have 2 versions:
C - for board mounting with screw and
E - for cable yrtminsyion (Free connector).
They are manufactured only in size No. 12 and both versions can be mounted either as a connector with male or a connector with female contacts.

Contact pins
Pins are gold plated copper alloy. Terminations are for mating by soldering.

Termination assembly
Sealing of cable sheath with shell E type is provided by termination assembly I type.

Cover
Suitable cover provides the protection of unmated connector with shell C version against dirt and mechanical damages.
Cover is supplied with connector only.

ELECTRICAL CHARACTERISTICS
