Audio Connectors

Application
Connectors Series 05 are applied for mounting to acoustic and similar units and electronic units for wide consumption e. g. record players, cassete recorders, radio and TV sets, tuners, musical instruments, etc. With its characteristica it meets DIN 41524 requirements.

Construction

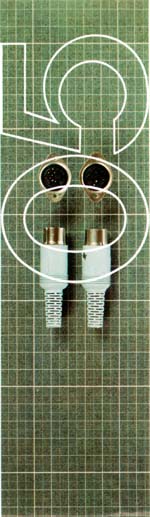

Connectors of this Series are perfomed with three and five contacts. Receptacle is for chassis mounting and plug for cable mounting. Shells are of metal and insulators of bakelite. Contacts are silver plated special bronze. Conductor terminations are solder jointed. Resilient adaptor and disengagement elements provide contact joint with conductor in male contact connectors from axial stresses and damages due to cable bending at connector entry.

Climate class
25/070/21

Service life
1000 mating cycles.

Electrical characteristics
