PVC INSULATED HOOK - UP WIRES, TEMPERATURE CLASS 105°C
Nominal voltage: 600 V
Testing voltage: 1500 V
Type: Avi - PPa
Standard: SNO 6743
(MIL - W - 5086 B/7A , AIR 4524 >>Filotex 1604<< )
Description:

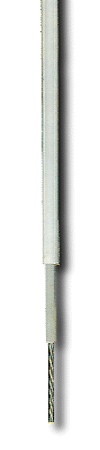

Conductor: 1. Flexible tinned copper strand
Insulation: 2. Seamless layer of PVC compound
Sheath: 3. Flame resistant polyamide
Application:
For electrical installation in aeronautics where resistance to flame, abrasion and
chemicals is requested.
Applied temperature: up to + 105°C.
Nominal
|
Construction
(wire |
Insulation thickness |
Sheath thickness min. |
Outer dia |
Total weight |
Packing |
||||||||||||
min. |
min. |
max. |
||||||||||||||||
AWG |
mm2 |
n x mm fi |
mm |
mm |
mm |
mm |
kg/km |
m |
||||||||||
| -------- | ----- | -------- | -------- | -------- | -------- | ----- | -------- | -------- | ||||||||||
24 |
0,21 |
19 x 0,12 |
0,27 |
0,12 |
1,26 |
1,45 |
3,9 |
50 |
||||||||||
22 |
0,38 |
12 x 0,20 |
0,23 |
0,12 |
1,38 |
1,57 |
5,2 |
50 |
||||||||||
20 |
0,60 |
19 x 0,20 |
0,23 |
0,12 |
1,58 |
1,77 |
7,5 |
50 |
||||||||||
18 |
0,93 |
19 x 0,25 |
0,26 |
0,12 |
1,88 |
2,07 |
11,1 |
50 |
||||||||||
i6 |
1,34 |
19 x 0,30 |
0,28 |
0,12 |
2,18 |
2,40 |
15,9 |
50 |
||||||||||
14 |
1,91 |
27 x 0,30 |
0,33 |
0,12 |
2,58 |
2,80 |
21,5 |
SO |
||||||||||
12 |
3,18 |
45 x 0,30 |
0,48 |
0,12 |
3,38 |
3,80 |
36,6 |
50 |
||||||||||
10 |
5,t5 |
73 x 0,30 |
0,51 |
0,14 |
4,10 |
4,40 |
58,0 |
50 |
||||||||||
8 |
8,98 |
127 x 0,30 |
0,68 |
0,14 |
5,40 |
5,70 |
99,3 |
50 |
||||||||||
