TEFLON INSULATED SCREENED HOOK - UP WIRES,TEMPERATURE CLASS 200°C
Nominal voltage: 250 V
Testing voltage: 1500 V
Type: ETF - KT braided
Standard: MIL-W-16878 D

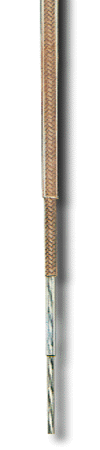

Description:
Conductor: 1. Tinned or pressed copper strand
Insulation: 2. Extruded teflon ( FEP- 100 )
Screen ( electrical protection ): 3. Fiber glass braid
Sheath : 4. Extruded teflon ( FEP- 100 )
Application:
For internal and outer installation in devices where
increased temperature and electromagnetic
protection is requested.
Applied temperature:
From - 100°C up to + 150°C for tinned conductor
From - 100°C up to + 200°C for silver-plated
conductor
| Nominal | Construction | Max. | Thickness | Braid | Min. | Total | Packing | |||||||||||
| cross section | (wire No x dia.) | resistance at 20°C | of insulation | wire dia. | min. braid closeness | sheath thickness | weight | |||||||||||
| mm2 | n x mm fi | Ohm/km | mm | Mm | % | mm | kg/km | m | ||||||||||
| ------- | ---------- | ------- | ------- | ------- | ------- | ------- | ------- | ------- | ||||||||||
| 0,14 1) | 18 x 0,10 | 118,8 | 0,15 | 0,07 | 80 | 0,1 | 7,5 | 100 | ||||||||||
| 0,20 2) | 7 x 0,20 | 87,2 | 0,15 | 0,10 | 80 | 0,1 | 10,1 | 100 | ||||||||||
| 0,35 2) | 19 x 0,15 | 57,1 | 0,15 | 0,10 | 80 | 0,1 | 11,9 | 100 | ||||||||||
Note: 1) cooper conductor is silver-plated, 2) copper conductor is tinned
